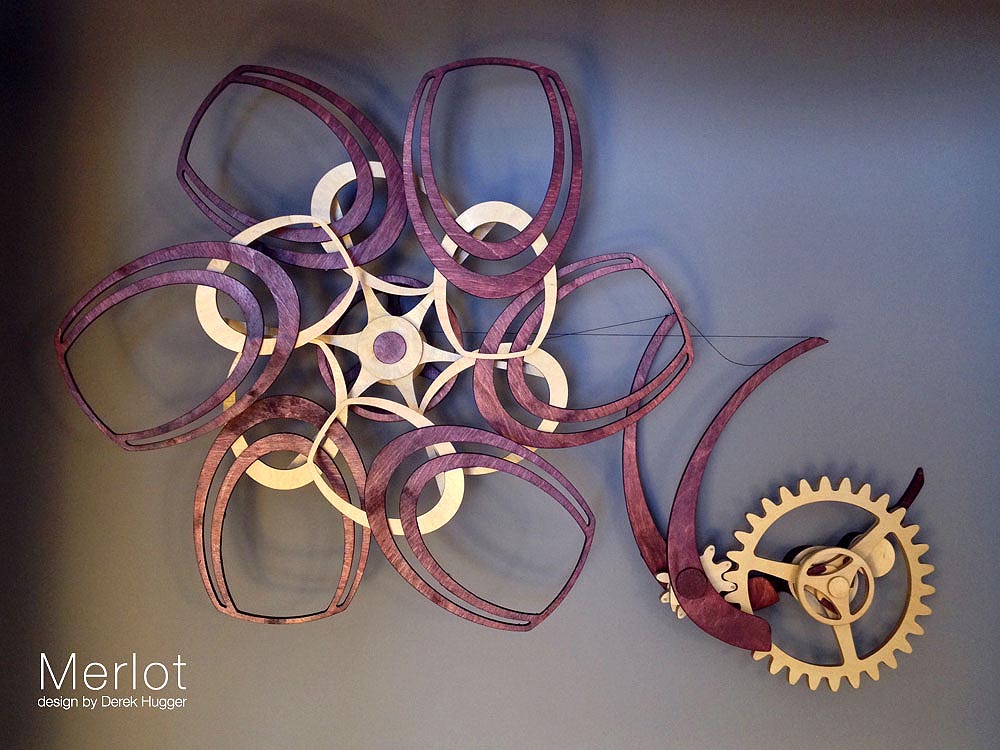

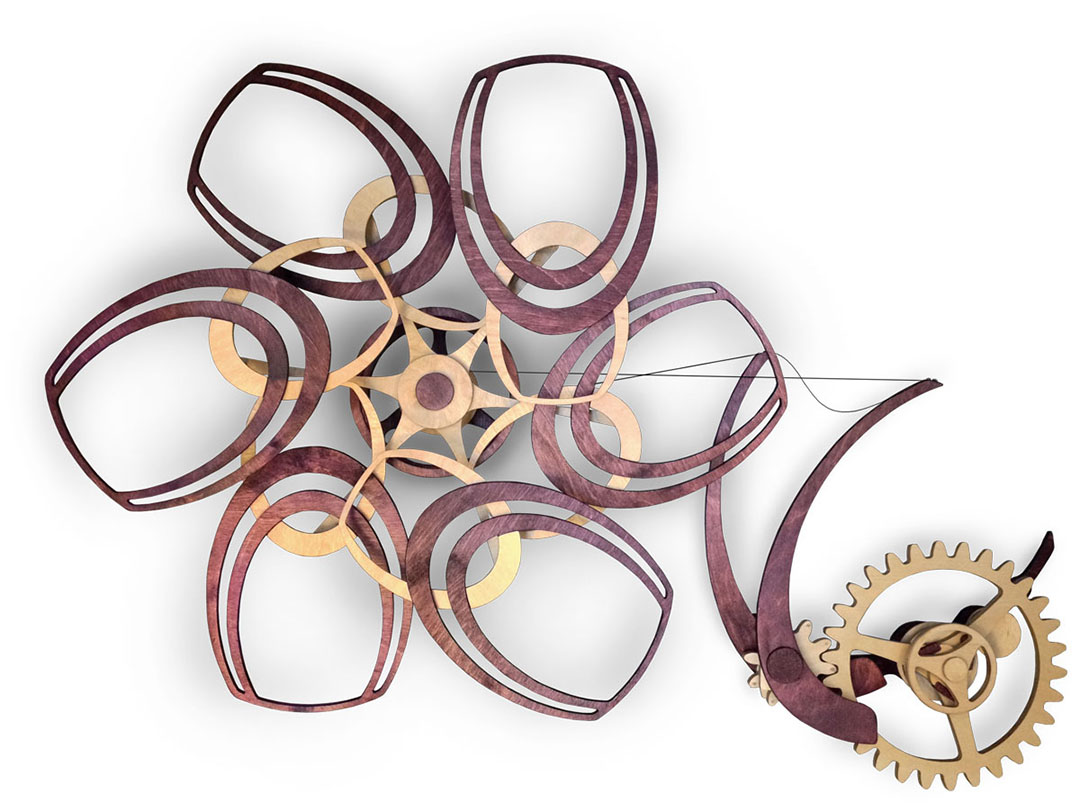

Merlot is a wooden kinetic sculpture that creates a mesmerizing kaleidoscopic effect. In one orientation, Merlot’s forms create an array of stemless wine glasses. Rotate those forms 180 degrees, and smaller, stemmed wine glasses appear. Fully wound, this elegantly engineered sculpture will dance for hours at a time.


$59












Controlled CG

Each cup assembly's center of gravity (CG) was carefully positioned to be exactly at the assembly's pivot point. This not only allows the six cup assemblies to have common parts, but also allows small weights to be attached in one of six positions behind each cup, assigning that cup’s orientation in the sculpture.


Virtually Silent

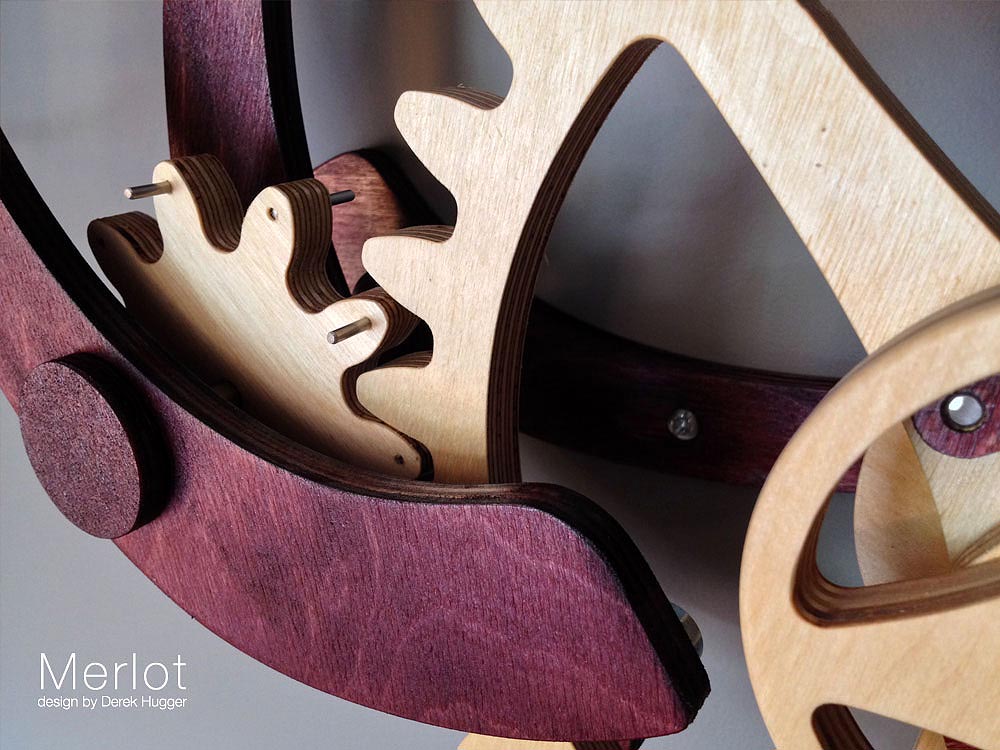

Merlot’s slow movement coupled with its pin/bell escapement design allows for almost silent operation. The only sound to be heard is a soft whirr from the speed limiting mechanism.


Captivating Illusions

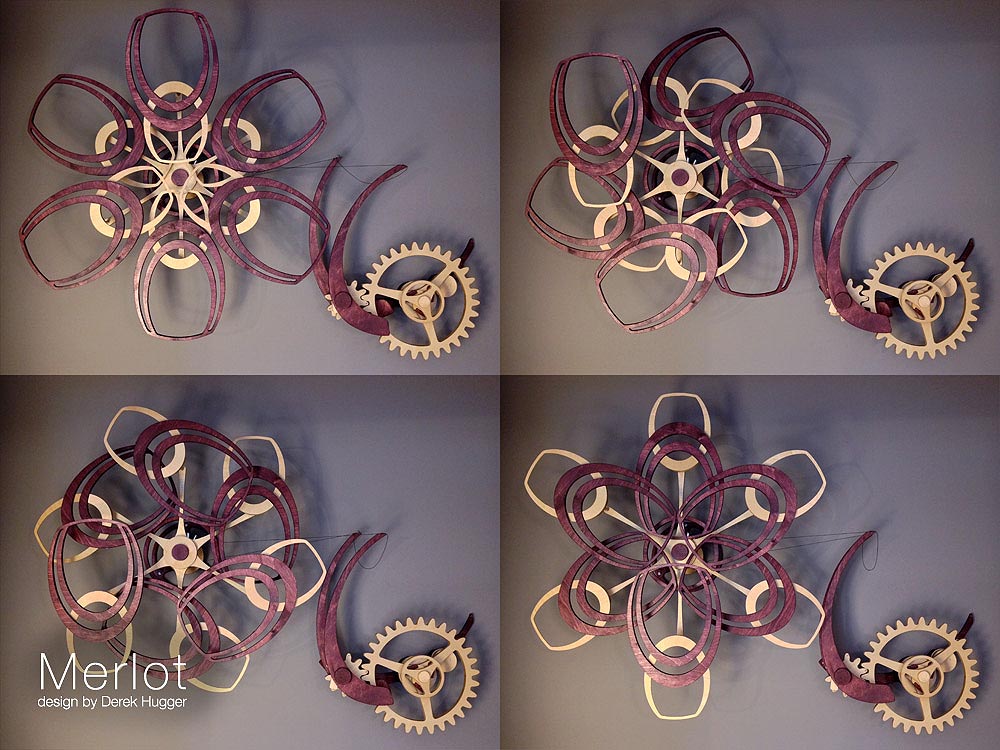

The combination of carefully managed CGs and cup orientations generates a dynamic visual effect of size, orientation, and shape change when the sculpture is in motion. But, like a Ferris wheel, each cup’s orientation never actually changes relative to gravity. The identical cup shapes are simply placed in different orientations relative to each other.


Easy Winding

Hold the large gear and rotate the wind wheel clockwise. The magnetic ratchet mechanism will click as Merlot’s spring winds behind the large gear. When wound, give the cups a gentle push to start their motion.
















Specifications


Size 32" h x 42" w x 8" d

Motion Spring Powered

Run Time
2.5 hours







Free Downloads

Merlot Sample Plans

The sample plans are a snippet of the purchased version. They contain a list of the tools needed, specifications for all required hardware, as well as samples of the wood patterns and assembly instructions.

Merlot Sample DXF

The sample DXF file can be used to test CAM software compatibility. For builders with CNC machines, the purchased version of the plans contains DXF files for all wood patterns.
  Merlot Woodworking Plans

Woodworking plans are delivered digitally via email.
Plans are sold securely through PayPal and are delivered through Payloadz.

Plywood parts can be cut manually with printable patterns in PDF format, or they can be cut with a CNC machine using the included DXF files.

Plans contain two PDF document sizes:
• 8.5" x 11" paper for instructions and small patterns
• 11" x 17" paper for large patterns

$59
